MS46522B
ShockLine 2-Port Performance VNA
The MS46522B series Vector Network Analyzer is optimized for measuring S-parameters and time domain characteristics of passive RF and microwave devices

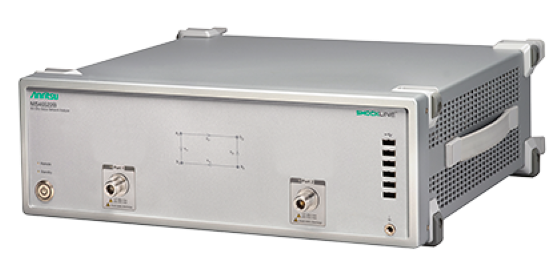

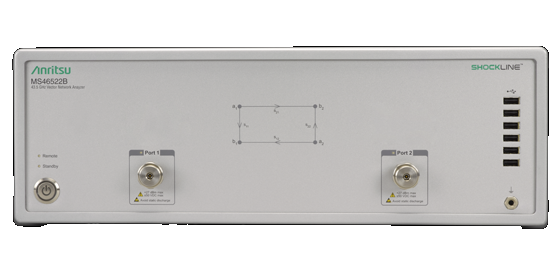

The ShockLine™ MS46522B series are 2-port performance vector network analyzers. Delivering an unprecedented level of value and performance, this series lowers the cost-of-test and speeds time-to-market in numerous testing applications up to 92 GHz, including: manufacturing and verifying mobile network equipment and devices for 5G mmWave applications; automotive cables; high-speed data interconnects; and system integration components.
The ShockLine MS46522B series, configured with Options 10, 20, or 43, brings RF to microwave frequency capabilities to this family. These frequency options, combined with powerful shockline software, provide a cost-effective solution for the most challenging passive device testing.

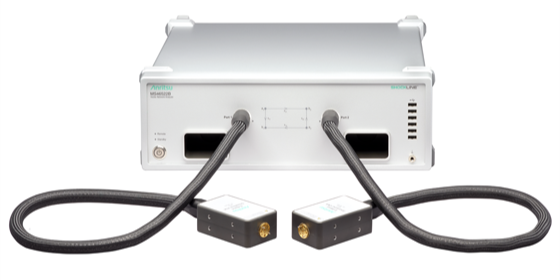

Options 82 and 83 are E-band frequency options for the ShockLine MS46522B VNA. These options use tethered source/measurement modules to bring a new level of performance, cost, and convenience to banded millimeter-wave (mmWave) measurements that are unprecedented in the marketplace. Option 82 comes with 1 meter tethers for bench top applications and option 83 is configured with 5 meter tethers targeting over the air (OTA) chamber installations. For applications requiring only E-band frequency coverage, the ShockLine MS46522B 55-92 GHz mmWave option is the best value on the market and enables mass market production of E-band components.
Option 2 enables real-time bandpass and lowpass time domain functionality. Lowpass time domain enables a TDR-like display with capability of showing real impedance over distance or time.
The 8.5 GHz ShockLine MS46522B VNA model has an additional bias tee option available, option 61, which allows the user to provide DC power for biasing devices while testing.
This series includes a computer and power supply in a compact 3U high chassis, and uses the same GUI, software, command syntax, drivers, and programming environments as the rest of the ShockLine family.
